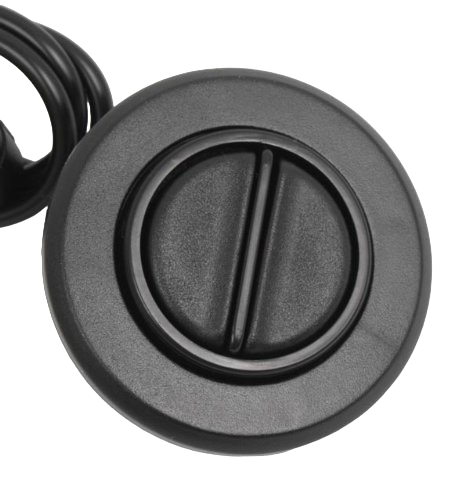

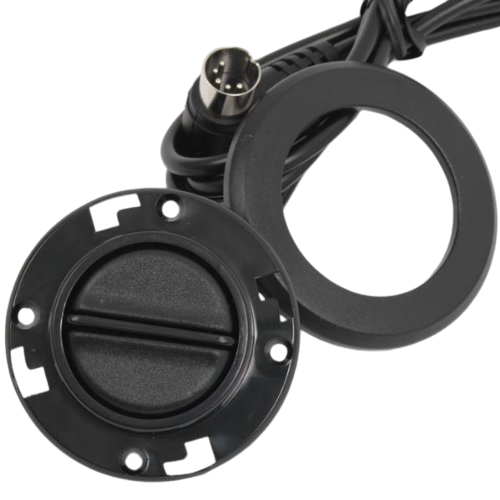

Method of Attachment This round two-button switch is attached to the chair with 4 screws (screws not supplied). The screws are then concealed by a circular cover plate which fits over the switch housing.

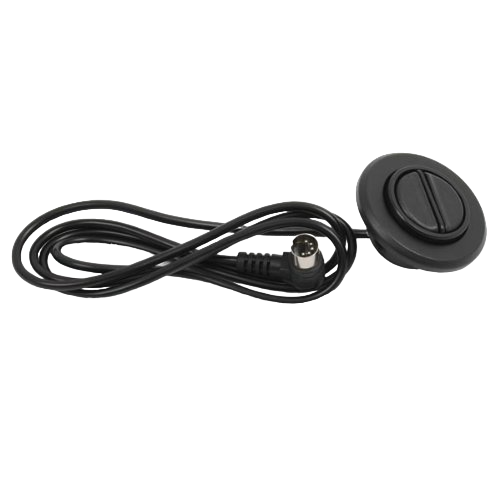

Switch, Cable, Male Plug The switch is supplied with a 53" cable terminating is a 5-pin male plug.

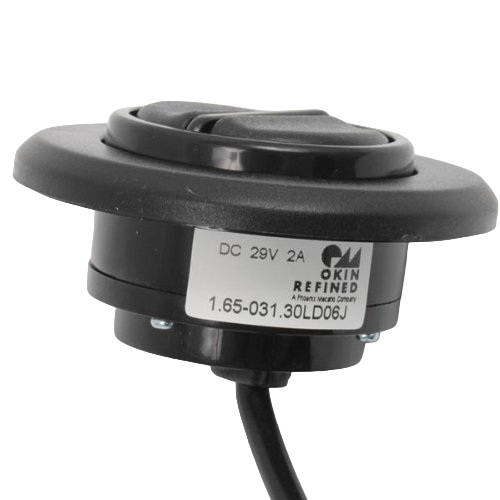

Electrical Information The switch is designed to operate on 29V DC at 2 Amps. Electrical contact is maintained by the switch as long as the switch buttons are depressed.
Switch Diameter: 2-5/8" Cable Length: 53" Plug: The insertable portion is 1/2" in diameter and has 5 pins. Inserts 7/16" into the receptacle. Electrical: 29V DC, 2A Color: Black
Switch Diameter: 2-5/8"
Cable Length: 53"

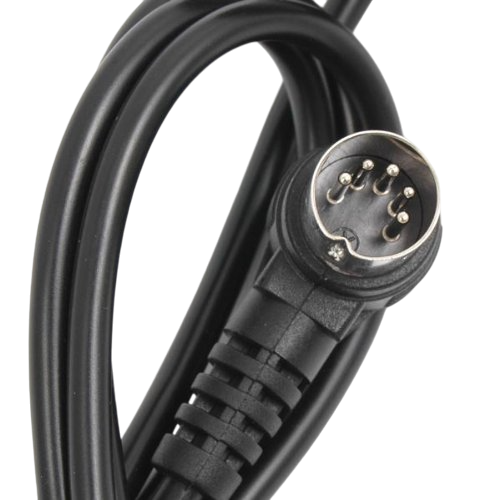

Plug: Insertable portion is 1/2" in diameter and has 5 pins. Inserts 7/16" into receptacle
